technical drawings

ARIA technical drawings_0000_Layer 7

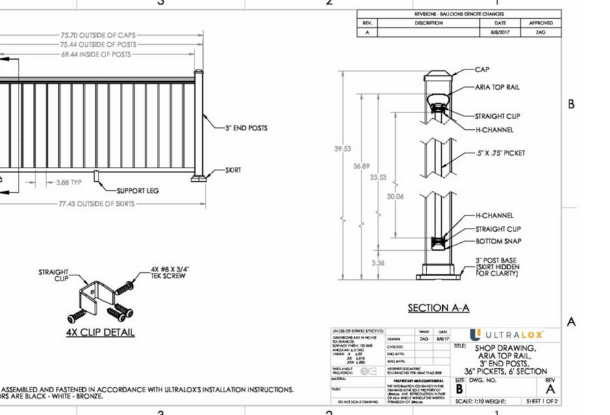

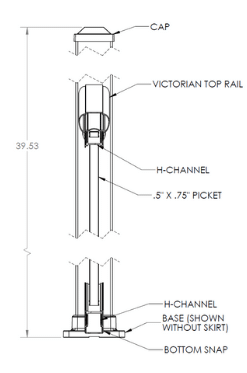

Aria 6 FT- 3 IN End Posts - 36 IN Pickets

ARIA technical drawings_0001_Layer 6

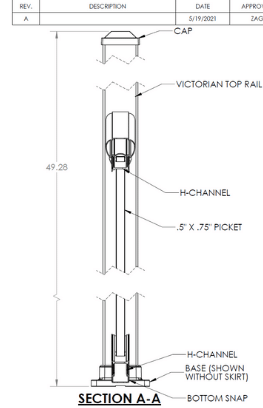

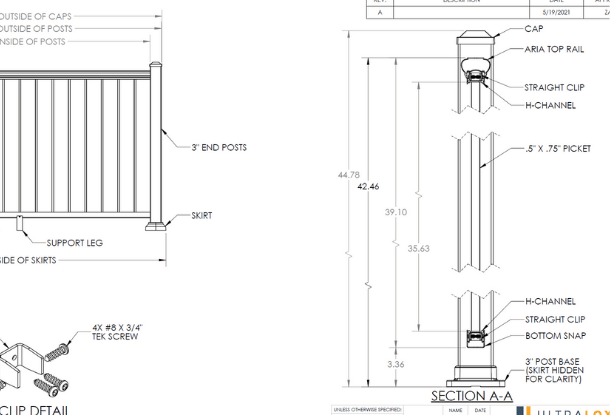

Aria 8 FT- 3 IN End Posts - 36 IN Pickets

ARIA technical drawings_0002_Layer 5

Aria Wall Mount

ARIA technical drawings_0003_Layer 4

Aria Clip Height

ARIA technical drawings_0004_Layer 3

3 IN Skirt Assembly Dimensions

ARIA technical drawings_0005_Layer 2

Base Plate Drawing

3in post cap

3in Solar Post Cap

post cap assemb

Post cap assemblies Dimensions
